SE-1200-1600 Automatic water-base oil and UV oil coating machine (Paper: 80-600gms)

  • Category Name: Automatic UV oil Coating machine
  • E-mail: sales1@jltmachine.com
  • Telephone: +86-577-65171599
1. Automatic Feeder
2. Water Dust Remover (optional)
3. UV coator/ Water base oil coator
4. IR and UV dry
5. Automatic Collector

Usage:
It is a paper surface varnishing (UV) and polishing machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²); various paper prints after processing greatly improve surface gloss; the print surface has the damp-proof and water-proof effects. The machine adopts the reversing mechanism to make the oil layer thinner and more even.
The machine also adopts a computer air knife device, a strong absorption mechanism and a right-and-right scraper transmission mechanism. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree.

Function introduction of each part:

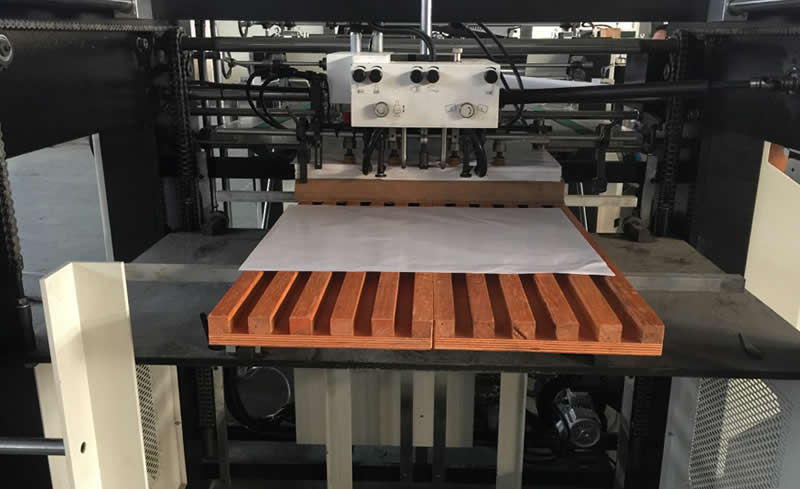

Automatic paper feeder:
The automatic paper feeder has the function of pre-piling paper to guarantee coherent and stable conveying.

Polishing and varnishing head:

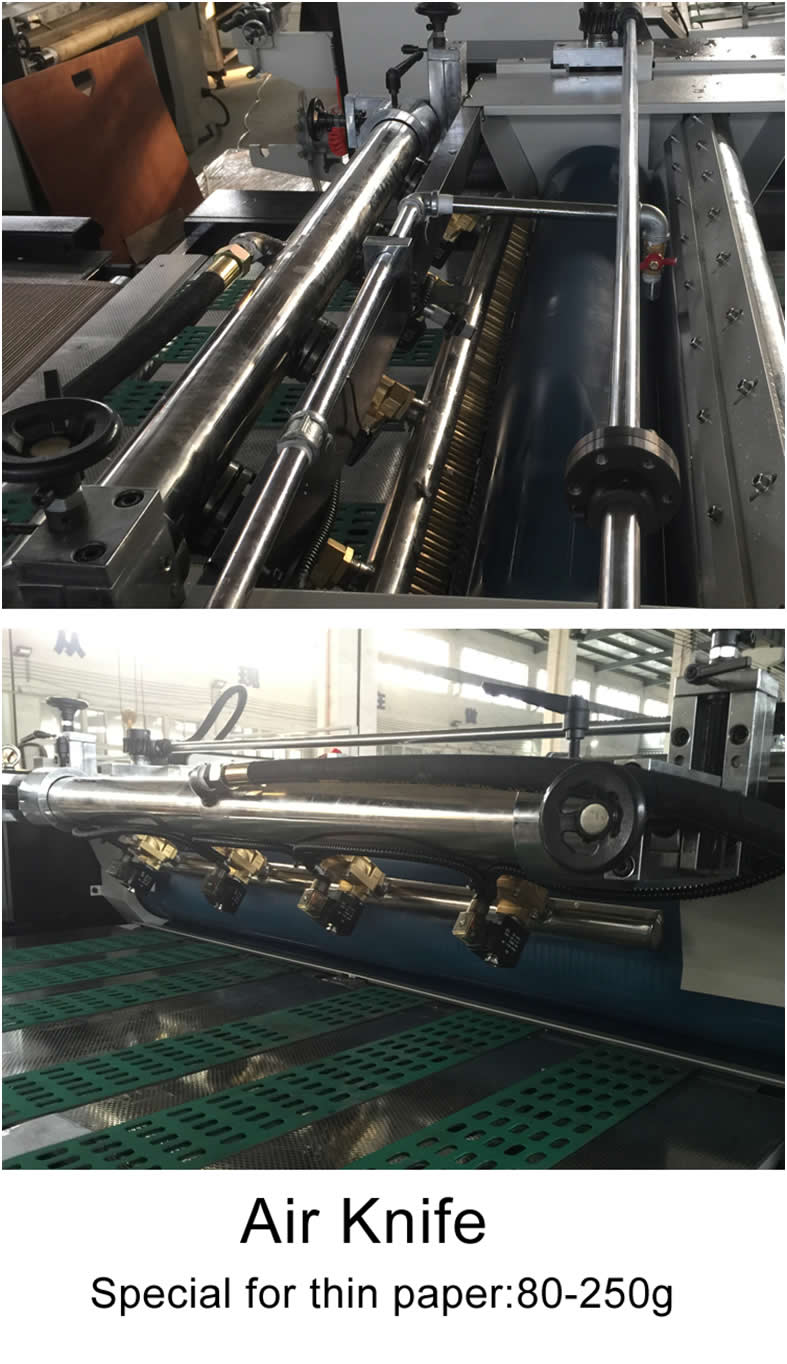

The head adopts a three-roller reversal speed control head to guarantee aqueous polishing effect and no stripe mark; the metering roller is driven by the independent motor so as to ensure even gumming amount. The air knife device can be used for the paper less than 250g.

Drying part:

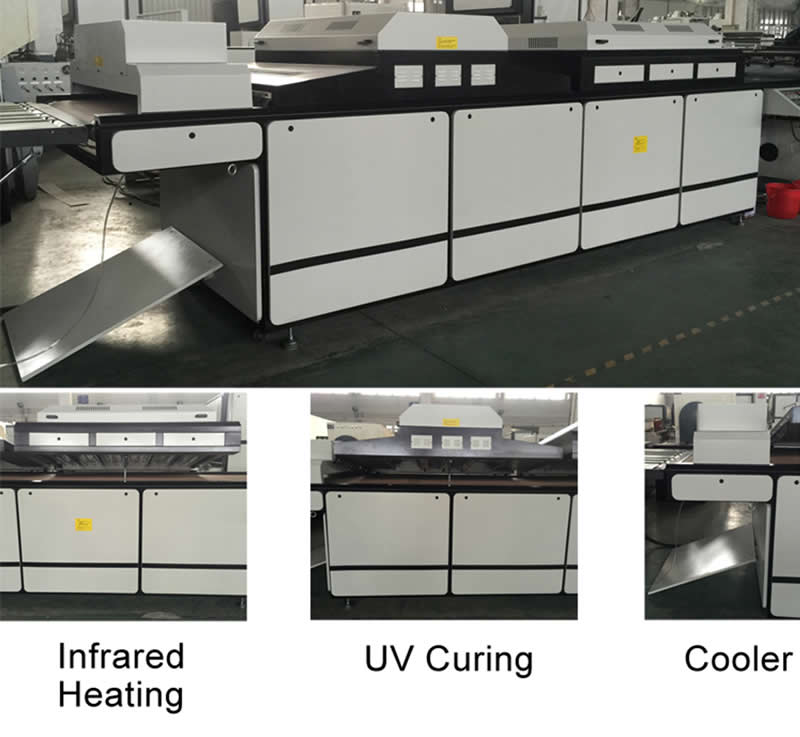

The infrared drying tunnel adopts 18 infrared tubes with 1.2Kw per piece. The ultraviolet drying tunnel adopts 3 ultraviolet tubes with 8Kw per piece. The inside of the drying oven adopts a UV automatic deviation-correcting device in high precision. The automatic temperature controller of infrared lamps has stable temperature. The more reasonable drying and cooling system with fan for assistance ensures the aqueous varnishing and drying effects; the infrared lamp and UV (ultraviolent) drying oven has an automatic rising-lowering protector.

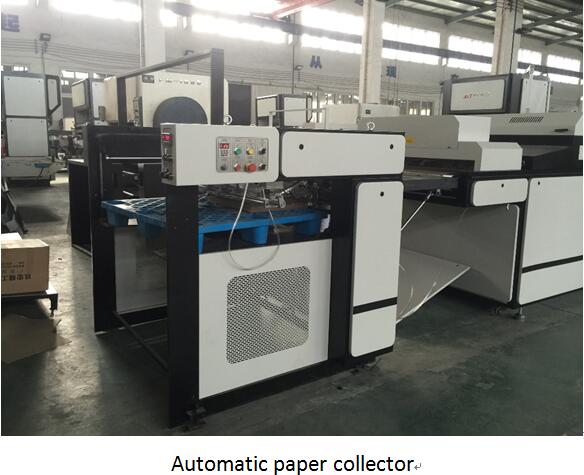

Automatic paper collector:
The automatic paper collector pats paper right and left to ensure paper collection in order without shutdown.

Main Technical Parameters:

Model

SE-1200 Manual

SE-1200 Automatic

Length of Roller

1250mm

1250mm

Max. paper size

1150

1150*900mm

Min. paper size

*

390*320mm

Paper Thickness

80-600g/m²

80-600g/m²

Working speed

80m/min

80m/min

Voltage

380v 50Hz

380V 50Hz

Motor Power

2.5kw

3.5kw

Total power

65kw

70kw

Infrared Heating Power

18kw (15 pcs*1.2kw)

18kw (15 pcs*1.2kw)

Ultraviolet Heating Power

24kw (3 groups*8kw)

24kw (3 groups*8kw)

Machine Weight

3000kg

4500kg

Overall Dimension

9800*2000*1600mm

11800*2000*1800mm

Package

Seaworthy packing

Seaworthy packing

Loading

40” container

40” container


Remark: accept customization of equipment in various specifications

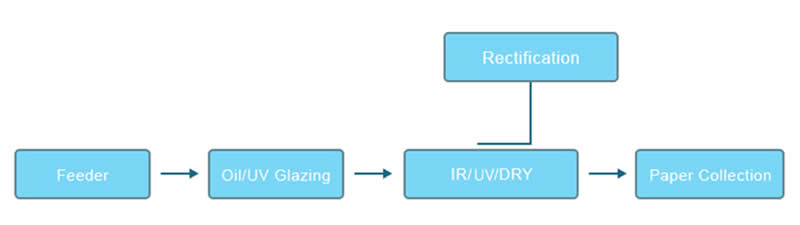

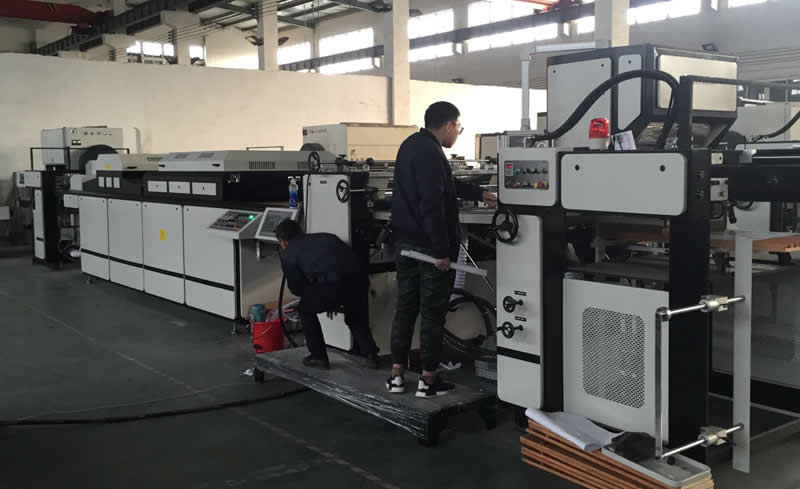

Processing line:


Product Characteristics:
The product has the functions of automatic paper feeding and collection, has rapid printing speed and improves the productivity effect.
The inside of the drying oven adopts a UV automatic skew detection mechanism in high precision.
The reasonable fan cooling system ensures aqueous varnishing and drying effects.
Three-roller reversal head guarantees no stripe mark.
The machine has industrial aesthetics design, beautiful and elegant appearance, scientific structure and stable performance.

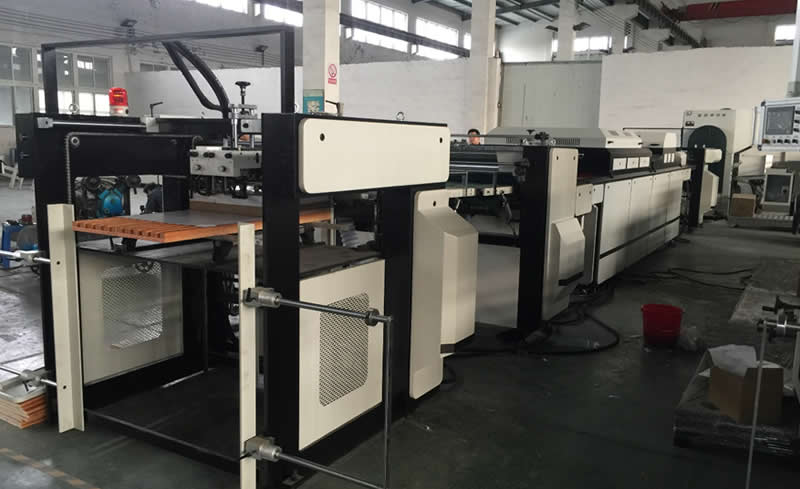

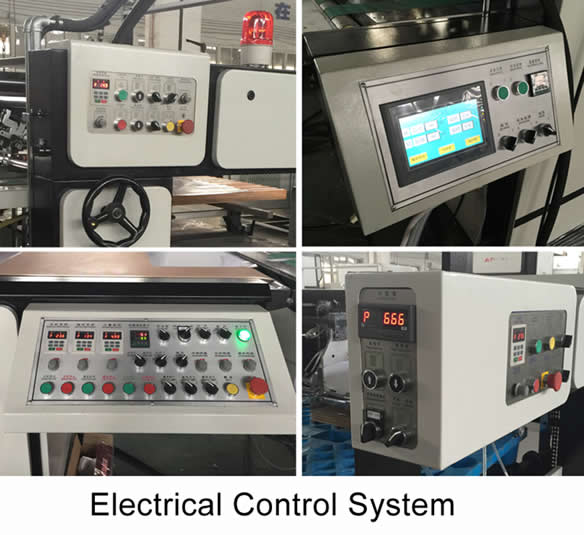

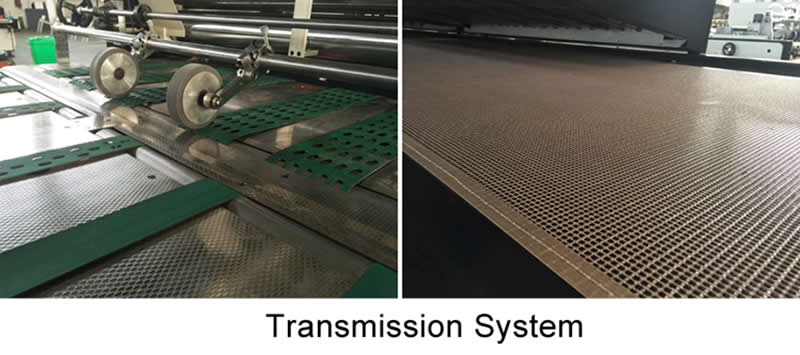

Machine main part image:



Automatic paper feeding-feeder







Detailed list of main parts

No.

Name

Brand

Origin

1

main motor

Gongtai

Shanghai

2

vacuum pump

Tongyou

Jiangsu

3

Feeder

Runze

Zhuji

4

transducer

Delta

Taiwan

5

gum pump

Lishao

Shanghai

6

Draught fan

Yinniu

Taizhou

7

Air cylinder

AIRTAC

Taiwan

8

conveying mesh belt

USAUS

Jiangsu

9

Bearing

NSK

Japan

10

Button

Schneider

Germany

11

AC contactor

Schneider

France

12

Breaker

CHNT

Wenzhou

13

Relay

Schneider

France

14

Transformer

Xingyiyuan

Beijing

15

UV lamp

Xingyiyuan

Beijing

16

switch power supply

Delta

Taiwan

17

optoelectronic switch

Teach

Shanghai

18

temperature controller

WINPARK

Jiangsu

19

Bearing

NSK

Japan

20

Electronic counter

Dahua

Wenzhou

21

touch screen

Delta

Taiwan

22

encoder

Omron

Japan

23

optical fiber sensor

Omron

Japan

24

thermoelectric couple

Teach

Shanghai

25

PLC

Julong

Shanghai

26

Capacitor

Xingyiyuan

Beijing

The above configuration is subject to change without prior notice
