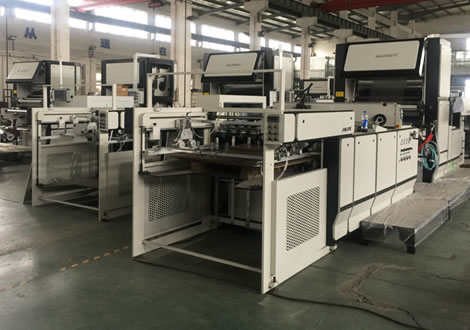

FM-E1080-1480 Automatic laminating machine with Chain knife (Speed:10-80m/min)

1. Non-stop feeder
2. Dust remover (optional)
3. Vertical laminator
4. Chain knife and round knife slitting unit
5. Automatic collector

Usage:
FM-E1080 fully Automatic High Speed Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter. Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof. it’s the best choice for printing and laminating enterprises of all scales.

Machine brief:
FM-E1080 fully Automatic high speed Vertical High-precision and multi-duty laminator is a newly developed product geared to the market demand, which is specially designed for water-based and dry laminating glue. The main unit is applied in cementing, drying and laminating, easy to operate. It can be used for multiple purpose, such as oil-type, water-based, and dry-type lamination. It is a new style film laminating machine. The chain knife cutting device (optional) specially for cutting thin paper which laminated for PTE, PVC film, also, it is suitable for cutting various thin films.

Machine each part introduction:

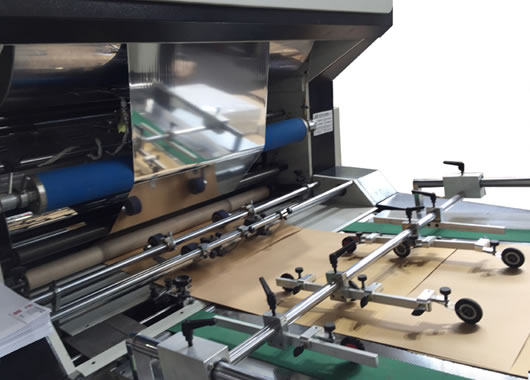

1. Automatic paper feeding machine edge landing machine

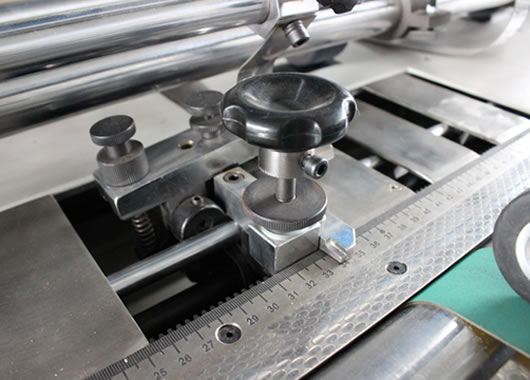

It adopts a feeder head for high-speed printer and has stable paper feed and accurate and simple operation; The automatic paper feeding device has the function of pre-piling paper and feeding paper continuously to guarantee continuous and stable laminating process, save time and improve productivity. The edge landing action controlled by servo motor make sure the edge precision is less than or equal to ±2mm; the automatic paper feeding device has the restriction in maximal and minimal paper size. Except the paper width is restricted, the length ratio of maximal paper and minimal is 3:1.

.

2. Powder removing machine unit (Optional)

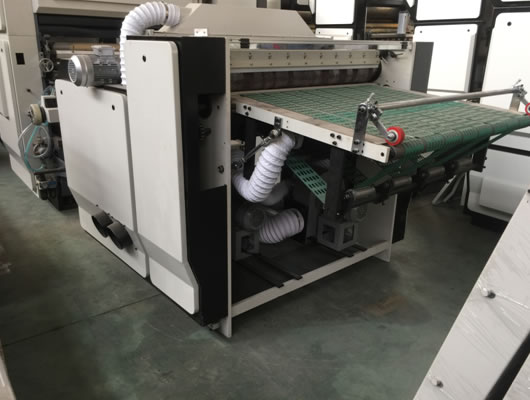

The laminated powder removing unit adopts dry-type powder removal, which consists of a bristle brush wheel for sweeping and absorbing powder and a heating press roll for removing powder. Powder action after the completion of edge landing action, to ensure that the paper feeding belt and paper feeding system in the process of removing powder no deviation and stable.


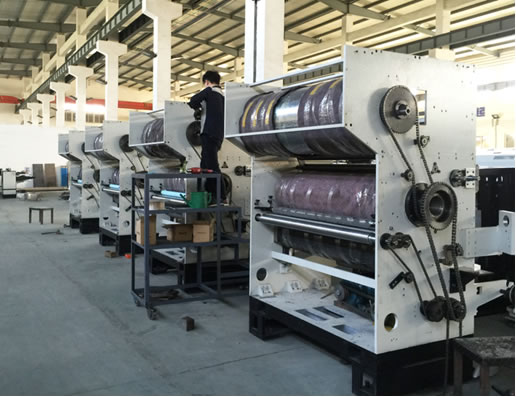

3. The mainframe consists of the gluing part, the drying part and the laminating part.

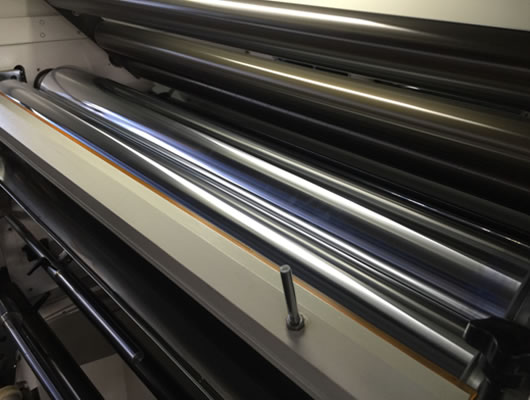

The gluing part mainly guarantees the glue evenness. It is gluing through the chrome roller running; the coating precision is normally controlled within 0.008mm; save more glue and gluing speed depend on the gluing precision, higher gluing precision with less glue and rapid gluing.


The drying part adopts a large-diameter steel roller (Φ820) with Quartz transparent tube, the temperature is controlled within 80, it adopts strong hot air circulation to reach the aim of rapid drying. Meanwhile, it guarantees the glue film is not overheated and deformed or broken.
The laminating part adopts electromagnetic heating by the hot-press roller which with the advantages of rapid heating, energy saving and environmental protection. Its diameter is Φ380mm, the inner diameter of rubber pressure roller cylinder is enlarged to 63mm, the total maximal pressure reach to10T, to ensure the products’ quality with high speed laminating processing.
Automatic device for glue roller boosting and releasing pressure, it is convenient to control pressure, and simple to operation. The mainframe controlling system adopts touch screen, simple operation and strong stability.


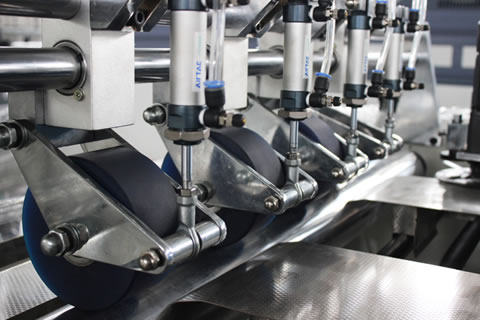

4. Paper cutter (paper cutter and paper puller)

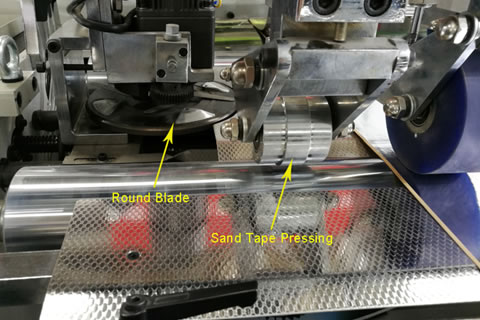

The paper cutter adopts a round-cutter device with convenient adjustment. It can guarantee effective paper cutting for paper more than 105g. The cutter is provided with the chain cutting system which specially aims at PET and PVC film cutting, replaces the original round-cut film system, can effectively cut any film straightly, so that the paper delivering smoothly and simple operate and adjust. PET film with adhesion strength and with higher anti-breaking performance than common film, chain knife easy to cutting the PET film, so favorable for post-processing, greatly reduces labor, time and abnormal waste, therefore reduces cost, it is a good helper for the paper cutter. The chain device controlled by servo motor independently, it is simple operation and maintenance. The cutter machine is provided with a thin-paper anti-curling device. The cutter adopts frequency control could achieve synchronous regulation with mainframe.


5. paper collecting machine
The automatic paper collecting machine of the laminating machine has the function of collecting paper without shutdown; the collecting size is matched with the paper feeder.


Technical parameters:
Remark: accept customization of equipment in various specifications

Processing line:

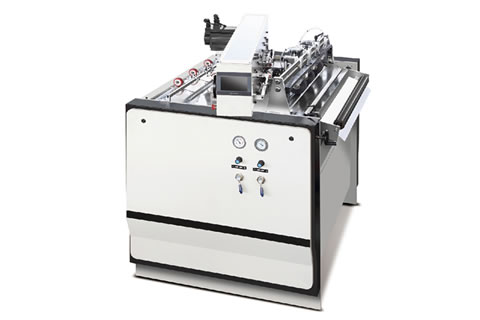

paper feeding unit, Edge landing unit, powder removing unit(optional), hot-press roller (electromagnetic heating), laminating mainframe, paper cutter, paper collecting machine

Machine image:
Pls refer to the link of the video. https://youtu.be/mmihOx1LagA

Machine function brief:
This feeder head also for high-speed printer with stable paper feed and keep accurate.
Paper feeding and collecting function without shutdown, effectively shorten the time of working.
Edge landing unit with servo control guarantees accurate and reliable edge landing.
Adopt coating by the chrome treatment roller, save the glue quantity and have evenly coating.
Strong hot air circulation could rapid drying
Anti-crimping device is suitable for thin-paper coating.
The heating steel roller adopts the electromagnetic heating system with rapid heating, energy saving and environmental protection.

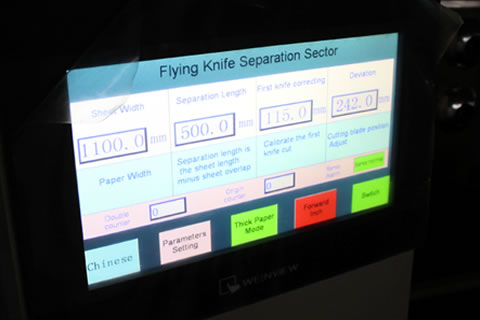

Human-computer interface with touch screen, convenient and individualized
Industrial design, beautiful and elegant appearance, develop its own features

Main configuration list

No.	Name	Brand	Origin
1	main motor	Bolilai	Zhejiang
2	Feeder	Runze	Zhuji
3	vacuum pump	Tongyou	Jiangsu
4	bear	NSK	Japan
5	optical fiber sensor	Omron	Japan
6	relay	Schneider	France
7	green flat button	Schneider	France
8	red flat button	Schneider	France
9	scram button	Schneider	France
10	rotary knob	Schneider	France
11	AC contactor	Schneider	France
12	servo motor	Delta	Taiwan
13	servo driver	Delta	Taiwan
14	servo reduction gear	Delta	Taiwan
15	switch power	Delta	Taiwan
16	temperature module	Delta	Taiwan
17	programmable logic controller	Delta	Taiwan
18	brake resistance	Delta	Taiwan
19	cylinder	AIRTAC	Shanghai
20	electromagnetic valve	AIRTAC	Shanghai
21	optoelectronic switch	Teach	Shanghai
22	touch screen	Xiankong	Shenzhen
23	transducer	Delta	Taiwan
24	breaker	CHNT	Wenzhou
25	electronic counter	Dahua	Wenzhou
26	thermal overload relay	Anderle	Wenzhou
27	hydraulic pump	Tiandi Hydraulic	Ningbo
28	chain	Sieling	Hangzhou
29	radiated dragon pipe	Longhui	Wenzhou
30	conveyer belt	Hulong	Wenzhou
31	one-way pneumatic diaphragm pump	FAZER	Wenzhou
32	draught fan	Yinniu	Taizhou
33	oil pipeline	Huilong	Hunan
34	electric thermocouple	Diqi	Shanghai
35	encoder	Omron	Japan
36	rolling motor	Shanghe	Shanghai
37	pressure gage	Heag	Hangzhou
38	amplifier	Laoyice	Germany
39	optical fiber	Omron	Japan
40	chain knife servo	Weikeda	Shenzhen
41	chain touch screen	Weinview	Taiwan

The above configuration is subject to change without prior notice
